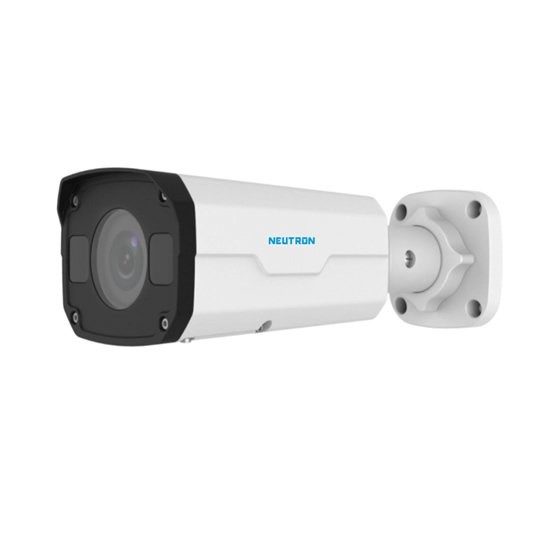

| IPC2324LBR3-SP-D |
IPC2324LBR3-SPZ28-D |
| Camera |
| Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens |
2.8 ~ 12mm, manual zoom lens |
2.8 ~ 12mm, motorized zoom lens |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63 |
25.2 |
12.6 |
6.3 |
| 12 |
270 |
108 |
54 |
27 |
| Angle of View (H) |
91.0° ~ 27° |
| Angle of View (V) |
54.4° ~ 13.7° |
| Angle of View (O) |
118.3° ~ 33.2° |
| Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 90° |
Rotate: 0° ~ 360° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.01Lux (F1.6, AGC ON)
0Lux with IR on |
| Digital noise reduction |
2D/3D DNR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| S/N |
>52dB |
| IR Range |
Up to 30m (98ft) IR range |
| WDR |
DWDR |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile |
| Frame Rate |
Main Stream: 4MP (2592*1520), Max 20fps;
Sub Stream:720P (1280*720), Max 20fps;
Third Stream: D1 (704*576), Max 20fps |
| HLC |
Supported |
| BLC |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 2 areas |
| Motion Detection |
Up to 4 areas |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Interface |
| Network |
1 RJ45 100M Base-TX Ethernet |
| Edge Storage |
MicroSD, up to 256GB |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 6.5W |
| Dimensions (L × W × H) |
240.3 × 86.4 × 75.6mm (9.46” × 3.4” × 2.98”) |
| Weight |
1kg (2.2lb) |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection |
IP67
|
