Model
|

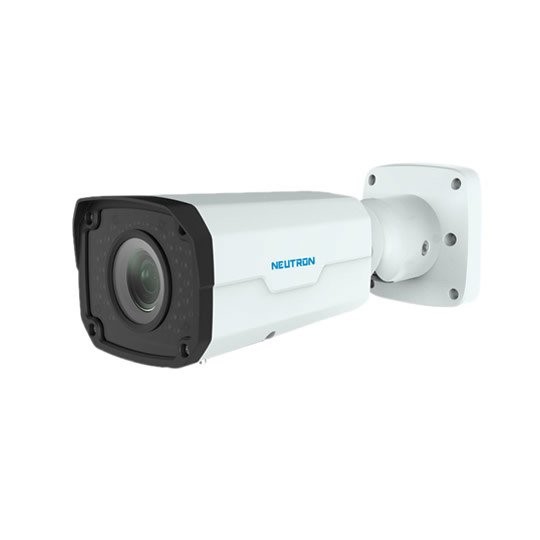

IPC2324EBR-DP
|
|
Camera
|
|
Sensor
|
1/3", 4 megapixel, progressive scan CMOS
|
|
Shutter
|
Auto/Manual, 1/6~1/8000s
|
|
Lens
|
2.8~12mm @F1.4; Angle of view: 95°~29°
|
|
Zoom/Focus
|
Manual
|
|
Min. Illumination
|
Colour: 0.02 Lux (F1.4, AGC ON)
0 Lux with IR on
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
IR Range
|
Up to 30m (98 ft) IR range
|
|
S/N
|
>55 dB
|
|
WDR
|
Optical WDR (up to 120 dB)
|
|
Video
|
|
Max. Resolution
|
2592 × 1520
|
|
Video Compression
|
H.265, H.264, MJPEG
|
|
Frame Rate
|
4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps
3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
|
|
9:16 Corridor Mode
|
Supported
|
|
ROI
|
Supported
|
|
Video Streaming
|
Triple
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 4 areas
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way audio
|
Supported
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 128 GB
|
|
Network
|
|
Protocols
|
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP
|
|
Compatible Integration
|
ONVIF, API
|
|
Interface
|
|
Audio I/O
|
Audio cable
|
|
Input: impedance 35 kΩ; amplitude 2 V [p-p]
|
|
Output: impedance 600 Ω; amplitude 2 V [p-p]
|
|
Alarm I/O
|
1 / 1
|
|
Network
|
10M/100M Base-TX Ethernet
|
|
Video Output
|
1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
|
|
General
|
|
Power
|
12 V DC, or PoE (IEEE802.3 af)
|
|
Power consumption: Max 8W
|
|
Material
|
Cast aluminum
|
|
Dimensions (L × W × H)
|
253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”)
|
|
Weight
|
0.58kg (1.28lb)
|
|
Working Environment
|
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
|
|
Vandal Resistant
|
IK10
|
|
Ingress Protection
|
IP66
|
