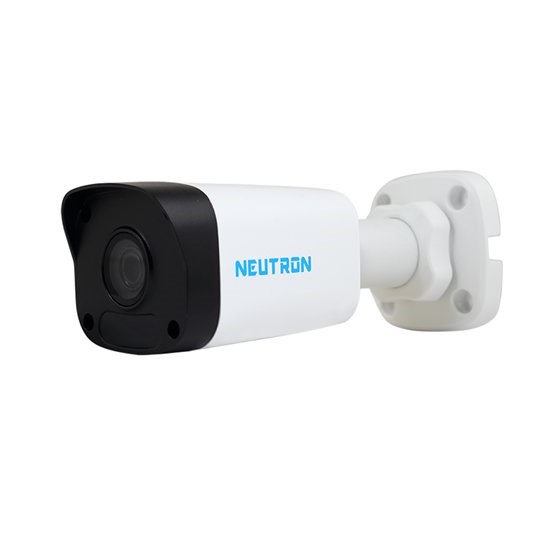

IPC2122CR3-PF40-A |
| Camera |
| Sensor |
1/2.7", 2.0 megapixel, progressive scan, CMOS |
| Lens |
4.0mm@F1.8 |
|
| DORI Distance |
Lens |
Detect(m) |
Observe(m) |
Recognize(m) |
Identify(m) |
| 4.0mm |
66.7 |
26.7 |
13.3 |
6.7 |
| 6.0mm |
90 |
36 |
18 |
9 |
| Angle of View (H) |
86.5° |
|
| Angle of View (V) |
44.1° |
|
| Angle of View (O) |
106.4° |
|
| Adjustment angle |
Pan: 0°~360° |
Tilt: 0°~90° |
Rotate: 0°~360° |
| Shutter |
Auto/Manual, 1~1/100000 s |
| Minimum Illumination |
Colour: 0.02 Lux (F1.8，AGC ON)
0 Lux with IR on |
| Digital noise reduction |
2D/3D DNR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| S/N |
>52dB |
| IR Range |
Up to 30m (98 ft) IR range |
| WDR |
DWDR |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile |
| Frame Rate |
Main Stream: 1080P (1920*1080): Max. 25 fps;
Sub Stream: 720P (1280*720): Max. 25 fps;
Third Stream: CIF (352*288): Max. 25 fps; |
| HLC |
Supported |
| BLC |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 8 areas |
| ROI |
Up to 2 areas |
| Motion Detection |
Up to 4 areas |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Compatible Integration |
ONVIF(Profile S, Profile T), API |
| Interface |
| Network |
10/100M Base-TX Ethernet |
| General |
| Power |
12 V DC±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.5W |
| Dimensions (L × W × H) |
167.3 × 62.9 × 62.7 mm (6.6” × 2.5” × 2.5”) |
| Weight |
0.37kg (0.81lb) |
| Working Environment |
-30°C ~ +60°C (-22°F ~ 140°F), Humidity: 10%~90% RH(non-condensing) |
| Ingress Protection |
IP66 |
| Reset Button |
Supported |
