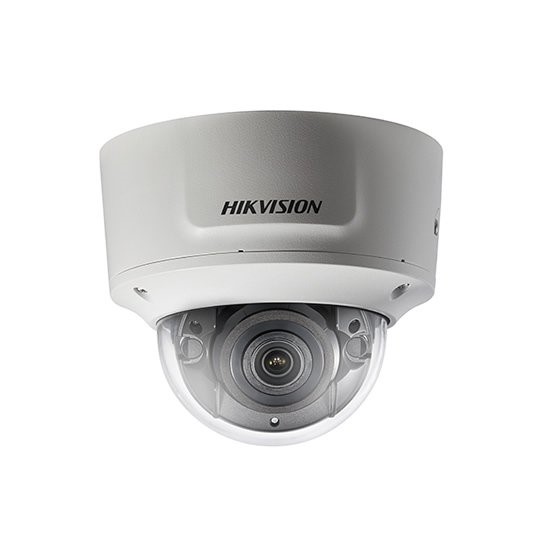

Haikon-Hikvision 8 MP IR Varifocal Dome Network Camera

Ürün Açıklaması

8 MP IR Varifocal Dome Network Camera


  • • 1/2 Progressive Scan CMOS



     • 3840 × 2160 resolution



     • H.265, H.265+



     • 120dB WDR



     • BLC/3D DNR/ROI/HLC



     • IP67, IK10



     • Powered by Darkfighter



     • 4 behavior analyses and face detection



     • Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Camera
Image Sensor:   1/2" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Slow shutter:   Support
Shutter time:   1/3 s to 1/100,000 s
Lens:   2.8 to 12 mm
Lens Mount:   φ14
Adjustment Range:   Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night:   IR cut filter with auto switch
Wide Dynamic Range:   120 dB
Digital noise reduction:   3D DNR
Focus:   Auto
Compression Standard
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:   32Kbps~16Mbps
Audio Compression:   G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:   64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams:   Yes
Max. Image Resolution:   3840 × 2160
Sub Stream:   50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate:   50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Third Stream:   50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement:   BLC/3D DNR
Image Settings:   Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:   Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:   Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage:   microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:   Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:   One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility:   ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface:   1 RJ45 10M / 100M Ethernet interface
Alarm:   1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output:   1Vp-p Composite Output (75 Ω, BNC)
On-board storage:   Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:   Yes
Audio
Environment Noise Filtering:   Support
Audio Sampling Rate:   8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis:   Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
Unattended Baggage:   Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:   Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:   Scene change detection
Recognition:   Face Detection
General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:   12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:   12 VDC, 0.9A, max. 10.5W
PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
Impact Protection:   IK10
Weather Proof:   IP67
IR Range:   Up to 30m
Dimensions:   Camera: Φ 153.4 × 133.1 mm (Φ 6" × 5.2")
Weight:   Camera: 1300 g (2.9 lb.)
With package: 1500 g (3.3 lb.)
