Haikon-Hikvision 4 MP ColorVu Fixed Network Bullet Kamera

Ürün Açıklaması

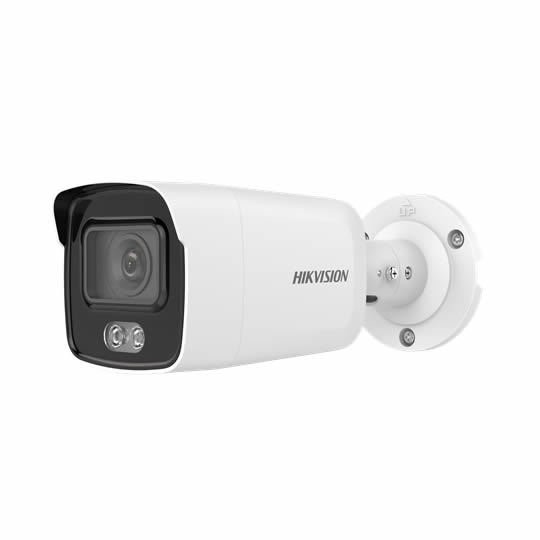

4 MP ColorVu Fixed Network Bullet Kamera

    • 1/1.8" Progressive Scan CMOS
    • 2560 × 1440 @ 25fps
    • F1.0 aperture, 2.8/4/6 mm fixed lens
    • 120dB WDR
    • H.265+, H.265, H.264+, H.264
    • IP67
    • Built-in micro SD/SDHC/SDXC slot, up to 256 GB
    • 24/7 full time color
Camera
Image Sensor:   1/1.8" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   Color: 0.0014Lux @ (F1.0, AGC ON), 0 Lux with white light
Slow shutter:   Support
Shutter time:   1/3 s to 1/100,000 s
Lens:   2.8 mm, horizontal FOV: 102°, vertical FOV: 51°, diagonal FOV: 125°
4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
Adjustment Range:   Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°
Wide Dynamic Range:   120 dB
Digital noise reduction:   3D DNR
Compression Standard
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:   Baseline Profile, Main Profile, High Profile
Video bit rate:   32Kbps~8Mbps
Max. Image Resolution:   2560 × 1440
Frame Rate:   50Hz: 25fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2560 × 1440), 30fps(2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream:   50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image Enhancement:   BLC/3D DNR/HLC
ROI:   1 fixed region for each stream
Day/Night Switch:   Day/Night/Auto/Schedule
Network
Network Storage:   microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function:   Anti-flicker, heartbeat, mirror, password protection, privacy mask, flash log
System Compatibility:   ONVIF (Profile S, Profile G),ISAPI
Intelligent
Behavior analysis:   Intrusion detection, line crossing detection
Interface
Communication Interface:   1 RJ45 10M / 100M Ethernet interface
Smart Feature-set
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:   12 V DC ± 20%, PoE (802.3af, class 3)
Power Consumption:   12VDC, 0.5 A, max. 6 W; PoE:(802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5 W

Weather Proof:   IP67
Dimensions:   Camera: 85 × 85 × 218 mm (3.3" × 3.3" × 8.6")
With package: 315 × 137 × 141 mm (12.4" × 5.4" × 5.6")
Weight:   Camera: 0.710 kg (1.6 lb.)
With package: 1.035 kg (2.3 lb.)
